HW3 (20%):建立 Webots 桌上籃球遊戲機模擬系統

hw3繪製零件

/downloads/41223215 shooter.7z

https://youtu.be/DddqK8xxv5s 半成品模擬影片

https://youtu.be/5rvXEyfOqPw 完成品模擬影片

https://youtu.be/EJ3XKhpBrUM webot製作

/downloads/shooter-2.7z檔案

過程

sovlespace繪製出零件繪製出設計圖再根據設計圖的形狀組配

組配完進行拆解轉檔(obj)(拆解過程會把尺寸縮小0.01倍)

進入webot 建robot 建出三個子特徵 solid(base) 兩個hingejoint(一個進行組裝一個鎖點)

組裝過程續注意座標軸(會根據你繪圖起始的地方做原點) 可以進入sovlespace進行測量

測量鎖點點位過程跟前面四連桿一樣可以在過程中進行測試看看點位有沒有準

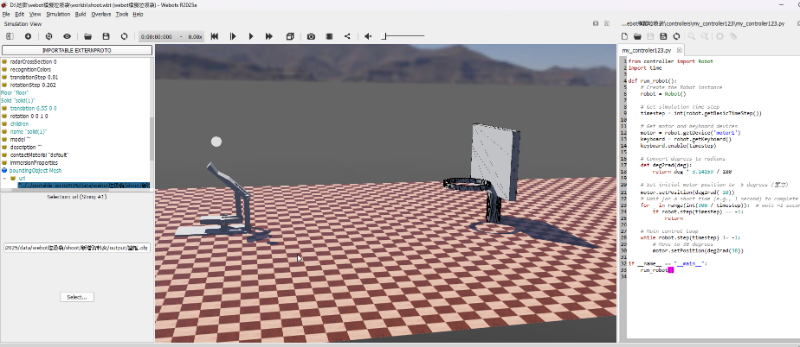

鎖好之後模擬(我有發現老師給的設計圖因為角度會讓球沒辦法射那麼遠所以我自己改良了程式在發射前程式會先畜力)

加入球體(shape) 給定物理性質

加入地板(floor)

加入籃框(我在畫籃框時匯入webot有個問題因為沒有轉檔(沒必要)所以尺寸是正常的100倍所以我自己又改了老師的分解檔案去掉拆開的部分只保留鎖小跟轉檔的能力)

之後模擬就成功了

以下為鎖小功能py檔

#!/usr/bin/env python
# -*- coding: utf-8 -*-
"""
STL to OBJ converter with scaling support
"""

import struct
import numpy as np
from pathlib import Path

class STLConverter:
    def __init__(self, filename, scale=0.001):
        self.filename = filename
        self.scale = scale
        self.is_binary = self._check_if_binary()

    def _check_if_binary(self):
        with open(self.filename, 'rb') as f:
            header = f.read(5).decode('utf-8', errors='ignore')
            return not header.startswith('solid')

    def _read_binary_stl(self):
        with open(self.filename, 'rb') as f:
            f.seek(80)
            triangle_count = struct.unpack('I', f.read(4))[0]

            triangles = []
            normals = []

            for _ in range(triangle_count):
                nx, ny, nz = struct.unpack('fff', f.read(12))
                normals.append([nx, ny, nz])

                triangle = []
                for _ in range(3):
                    x, y, z = struct.unpack('fff', f.read(12))
                    triangle.append([x * self.scale, y * self.scale, z * self.scale])
                triangles.append(triangle)

                f.seek(2, 1)

        return np.array(triangles), np.array(normals)

    def _read_ascii_stl(self):
        triangles = []
        normals = []
        current_triangle = []

        with open(self.filename, 'r') as f:
            for line in f:
                line = line.strip()
                if not line:
                    continue

                parts = line.split()
                if not parts:
                    continue

                if parts[0] == 'facet' and parts[1] == 'normal':
                    normals.append([float(parts[2]), float(parts[3]), float(parts[4])])
                elif parts[0] == 'vertex':
                    current_triangle.append([
                        float(parts[1]) * self.scale,
                        float(parts[2]) * self.scale,
                        float(parts[3]) * self.scale
                    ])
                elif parts[0] == 'endfacet':
                    if current_triangle:
                        triangles.append(current_triangle)
                        current_triangle = []

        return np.array(triangles), np.array(normals)

    def _write_mtl(self, filename, material_name):
        with open(filename, 'w', encoding='utf-8') as f:
            f.write(f"newmtl {material_name}\n")
            f.write("Ka 0.2 0.2 0.2\n")
            f.write("Kd 0.8 0.8 0.8\n")
            f.write("Ks 0.5 0.5 0.5\n")
            f.write("Ns 50.0\n")
            f.write("d 1.0\n")
            f.write("illum 2\n")

    def _write_obj(self, filename, triangles, normals):
        vertex_dict = {}
        vertex_list = []
        normal_list = []
        faces = []

        for triangle, normal in zip(triangles, normals):
            face_indices = []

            for vertex in triangle:
                vertex_tuple = tuple(vertex)
                if vertex_tuple not in vertex_dict:
                    vertex_dict[vertex_tuple] = len(vertex_list) + 1
                    vertex_list.append(vertex)
                face_indices.append(vertex_dict[vertex_tuple])

            normal_list.append(normal)
            faces.append(face_indices)

        material_name = filename.stem
        mtl_filename = filename.with_suffix('.mtl')

        with open(filename, 'w', encoding='utf-8') as f:
            f.write(f"mtllib {mtl_filename.name}\n")
            f.write(f"usemtl {material_name}\n\n")

            for v in vertex_list:
                f.write(f"v {v[0]} {v[1]} {v[2]}\n")

            for n in normal_list:
                f.write(f"vn {n[0]} {n[1]} {n[2]}\n")

            for i, face in enumerate(faces):
                f.write(f"f {face[0]}//{i+1} {face[1]}//{i+1} {face[2]}//{i+1}\n")

        self._write_mtl(mtl_filename, material_name)

    def convert(self, output_path):
        if self.is_binary:
            triangles, normals = self._read_binary_stl()
        else:
            triangles, normals = self._read_ascii_stl()

        output_path = Path(output_path)
        output_path.parent.mkdir(parents=True, exist_ok=True)
        self._write_obj(output_path, triangles, normals)
        print(f"轉換完成：{output_path}")
        print(f"材質檔：{output_path.with_suffix('.mtl')}")

# 使用範例
try:
    input_stl = "籃框.stl"
    output_obj = "output/籃框.obj"
    scale = 0.005

    converter = STLConverter(input_stl, scale=scale)
    converter.convert(output_obj)
except Exception as e:
    print(f"錯誤: {e}")

以下為畜力控制器

from controller import Robot
import time

def run_robot():
    # Create the Robot instance
    robot = Robot()

    # Get simulation time step
    timestep = int(robot.getBasicTimeStep())

    # Get motor and keyboard devices
    motor = robot.getDevice('motor1')
    keyboard = robot.getKeyboard()
    keyboard.enable(timestep)

    # Convert degrees to radians
    def deg2rad(deg):
        return deg * 3.14159 / 180

    # Set initial motor position to -5 degrees (蓄力)
    motor.setPosition(deg2rad(-10))
    # Wait for a short time (e.g., 1 second) to complete the back movement
    for _ in range(int(300 / timestep)):  # wait ~1 second
        if robot.step(timestep) == -1:
            return

    # Main control loop
    while robot.step(timestep) != -1:
        # Move to 38 degrees
        motor.setPosition(deg2rad(38))

if __name__ == "__main__":
    run_robot()
